T2000 Brick Making Machine
T2000 block making machine has the capability of layered production, which is divided into backing material
Contact Us：
+86 595-22682555
|

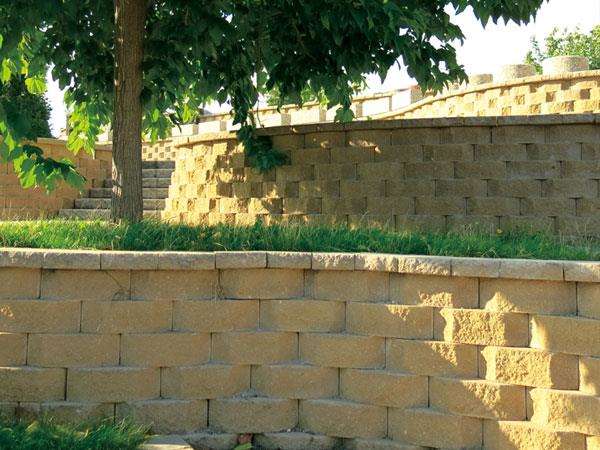

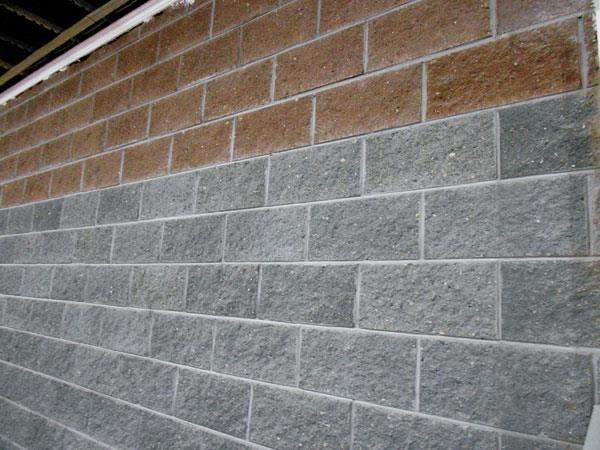

T2000 block making machine has the capability of layered production, which is divided into backing material displacement mechanism and surface layer material displacement mechanism. The design of independent forming mechanism can ensure large work platform and the vibration platform can reach 1400*1350. It can produce building hollow block, municipal pavement brick, pc floor tile, ecological stone- imitation floor tile, road traffic stone and super–large water conservancy ecological revetment block, etc. The configuration features of production line 1. Automatic quick mould change mechanism: the standby mould is transported to the top of vibration generator by automatic transmission device. Then the mould frame and pressure head pneumatic locking device will automatically lock this mould and complete the quick mould change. 2. Automatic color mixing mechanism: materials of different colors are transported into the silo, and the color mixing device can mix materials under the action of the control system so as to produce colorful color mixing products. 3. Pneumatic material scraping and flattening mechanism: it can make the material surface more even and can improve the quality of product surface. |
| Overall dimension |
7510×2670×4200mm |
Vibration method |
Table mould resonate |
| Pallet size |
1400×1150×45(Wooden) /14（Steel）
|
Vibration frequency |
50-70hz |
| Working area |
1300×1050mm |
Installed capacity | 80.4KW |
| Machine weight | 30000kg | Circle time |
15s-25s Depending on the product size |
|
Specification of products(mm) |
Number of blocks per pallet |
Pieces/1 hour |
Pieces/8 hour |
Pieces/300 day(two shifts) |
||
| Block |
  |
400×200×200 390×190×190 |
15 | 3,600 | 28,800 | 17,280,000 |
|
Hollow Brick |
  |
240×115×90 |
40 | 9,600 | 76,800 | 46,080,000 |
|
Paving Brick |
  |
225×112.5×60 |
40 | 9,600 | 76,800 | 46,080,000 |
| Floor Brick |
  |
200×100×60 |
54 | 7,776 | 103,680 | 62,208,000 |
|
Standard Brick |
  |
240×115×53 |
80 | 19,200 | 153,600 | 92,160,000 |
