Concrete Component Forming Machine HY3200

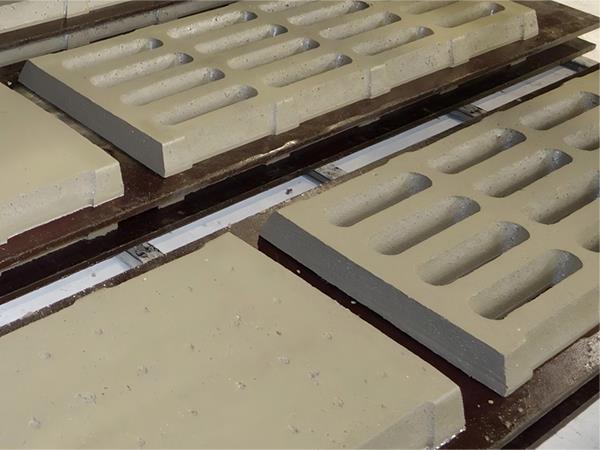

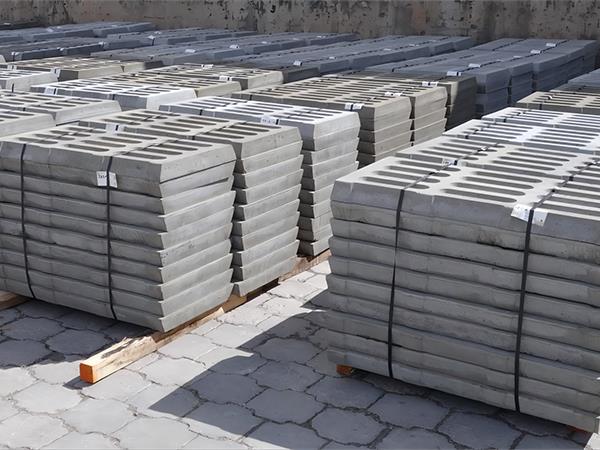

This molding machine can be applied to the production of a variety of concrete precast components, such as the farm leakage plate,municipal trench, cover plate and other concrete precast components. Adopting the processes of workstation mobility, instant molding, and instant demolding effectively enhances production efficiency, reduces site space and labor requirements, and ensures better product quality.
Contact Us：
+86 595-22682555
|
1. The efficient drive system utilizes a frequency conversion system from internationally renowned brands.
2. The precise and energy-efficient hydraulic system, which uses servo drives, ensures accurate movements and reduces energy consumption, making it less prone to oil temperature increases. 3. A powerful vibration system, four powerful vibrators are installed on the same vibration beam, vibration transmission is efficient, vibration frequency and amplitude are flexibly adjusted to adapt to material changes. 4. Advanced control system, using first-class international brands, combined with the targeted development of the control system makes the operation easy and easyt. 5. The exquisite cloth system cleverly combines material distribution, cloth, scraping and smoothing, making it more flexible and efficient. |
|
Max Product Size |
3400×1250mm |
Hopper Height |
1600mm |
|
Rotray Height |
1.1m |
Hopper Strorage |
1.5m³ |
|
Max Demoulding Height |
200mm |
Machine Size |
8660×4000×4340mm |
|
Power |
62Kw |
Machine Weight |
30T |
|
Vibrator Qty |
4 |
Max Product Weight |
1T |
|
Vibration |
260KN |
Max Mould Weight |
3T |
|
Voitage |
380V |
Cycle Time |
5-12min |
